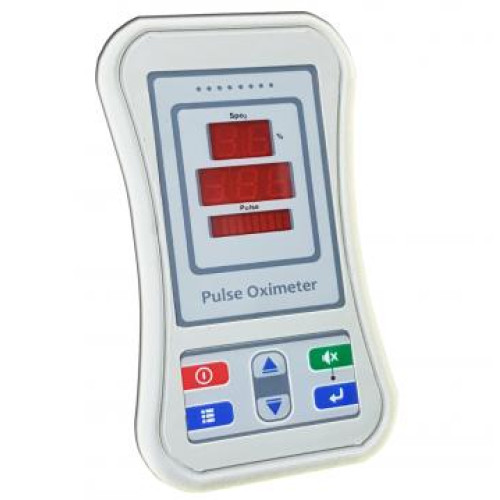

Model: 410B

• Compact & User friendly portable Device

• Spo2 and Pulse Rate Measurement in hospital, Clinics or Home.

• 7 segment Display for batter visibility

• LED bar display for Pulse strength

• Rechargeable battery for up to 15 hours of work

• Suitable for Adult, Pediatric and Neonate

• 4 x AA Rechargeable batteries

• Suitable for spot and continuous measurement

• High and Low Pulse Rate and Spo2 Alarm

• Pulse Beep sound with every detected pulse

• Automatic Power off function for battery saving

Pulse Rate Range: 30 to 250 bpm

SpO2 Range: 0 to 100%

Resolution

Pulse Rate (30 to 250 bpm)

Normal: +- 2bpm

Motion: +- 3bpm

Low Perfusion: +- 3bpm

SpO2 (70 to 100 %)

Normal: +- 2%

Motion: +- 3%

Low Perfusion: +- 3%

Environmental Specifications

Operating temperature: 0 to 45 DegC

Storage temperature: 20 to 60 DegC

Operating Humidity: 30 to 95%

Storage Humidity: 10 to 100%

Operating Altitude: 500 to 5000m

Storage Altitude: 500 to 10000m

Classificastion

Type of Protection : Internally power equipment

 (on battery power)

EMC Compliance : Class B

Degree of Protection : Type BF-Applied Part

Mode of Operation : Continuous

Enclosure Degree of Ingress Protection : IPX2

Display & Indiacators

Sp02 Display : Red LED

Pulse Rate Display: Red LED

Pulse intensity: Red LED 8 Bars

Power Indicator Light: RED-LED

Low Perfusion Indicator: Red Bar
